NDR001 Case and Bracelet

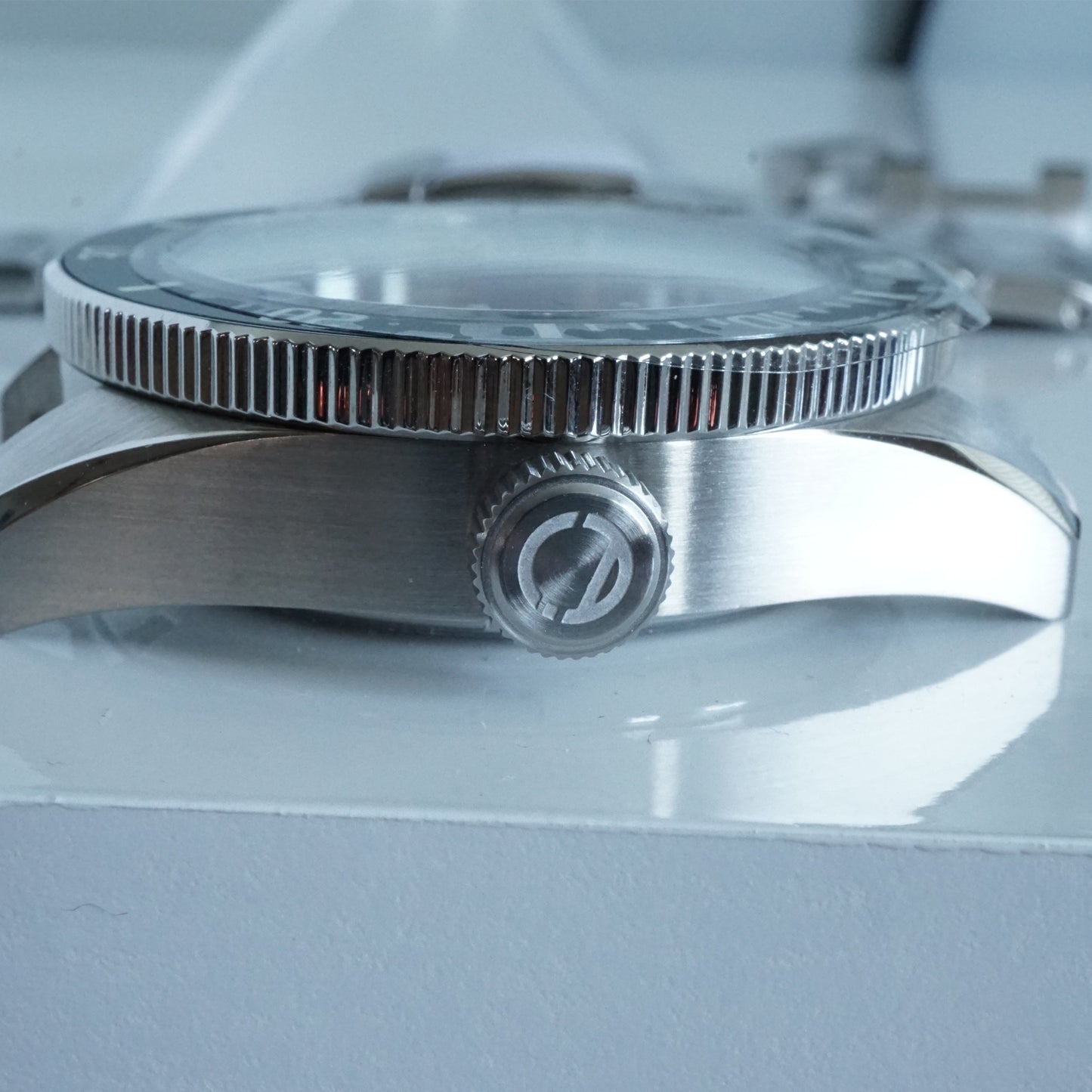

This is a 3 o'clock case various Seiko movements including the NH35. The case has a 40mm diameter when fully assembled and very similar to the. These are cases that were used for my NDR001 watch back in 2019 and NOT compatible with standard Seiko parts other than the movements. This case is NOT compatible with standard 28.5mm dials and uses a 32mm dial. After some rudimentary testing, it can also work with a standard SKX chapter ring and dial. You would just need a way to affix the chapter ring to the dial.

This item comes with a movement spacer, installed bezel, installed crystal, solid case back with the appropriate gasket, crown.  Case specifications are below:

Case Material: 316L Stainless Steel
Finishing: Polished
Case Diameter: 41.2mm (with bezel)
Case Thickness: 13-14.3mm (with bezel at edge)

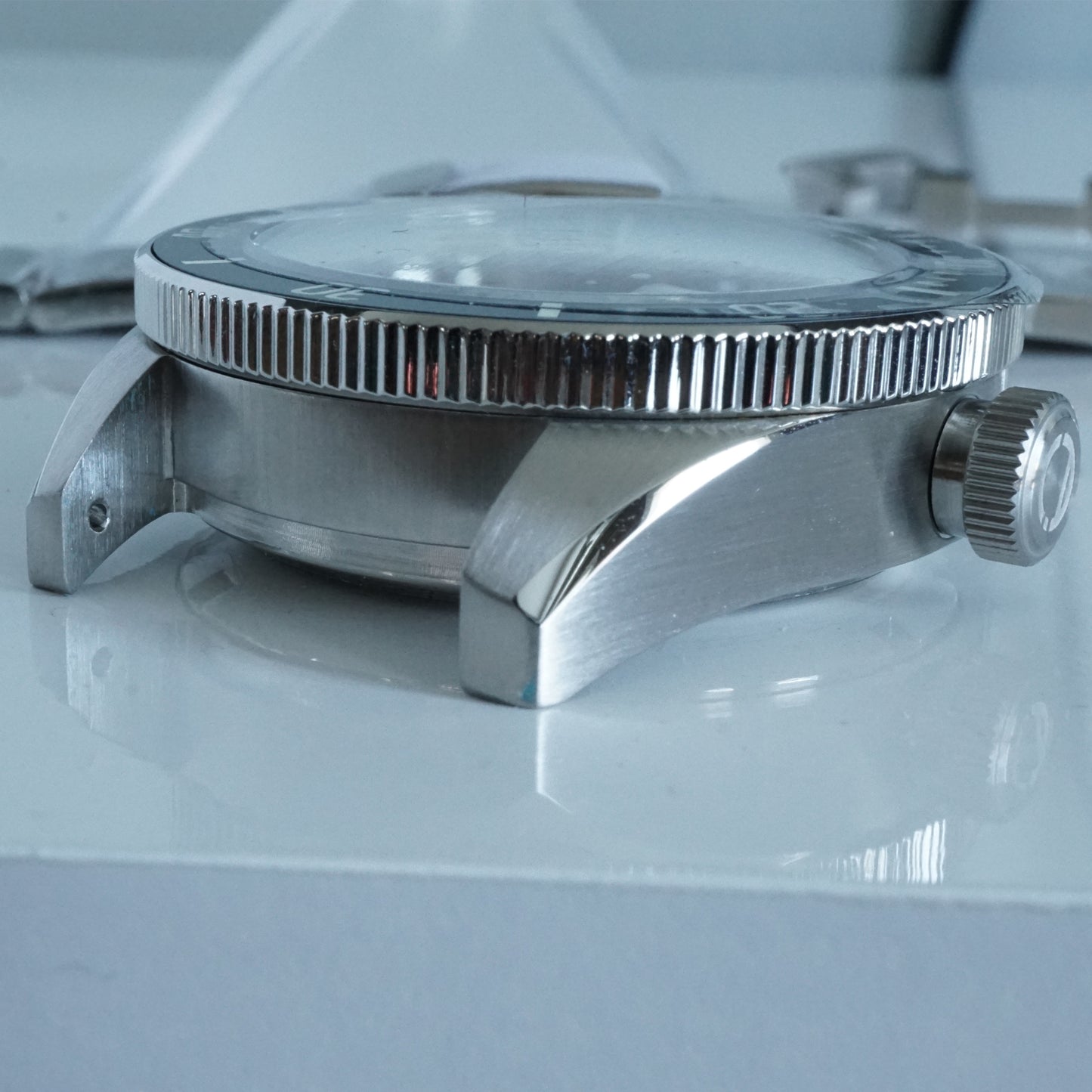

Lug to Lug Height: 48mm
Lug Width: 20mm

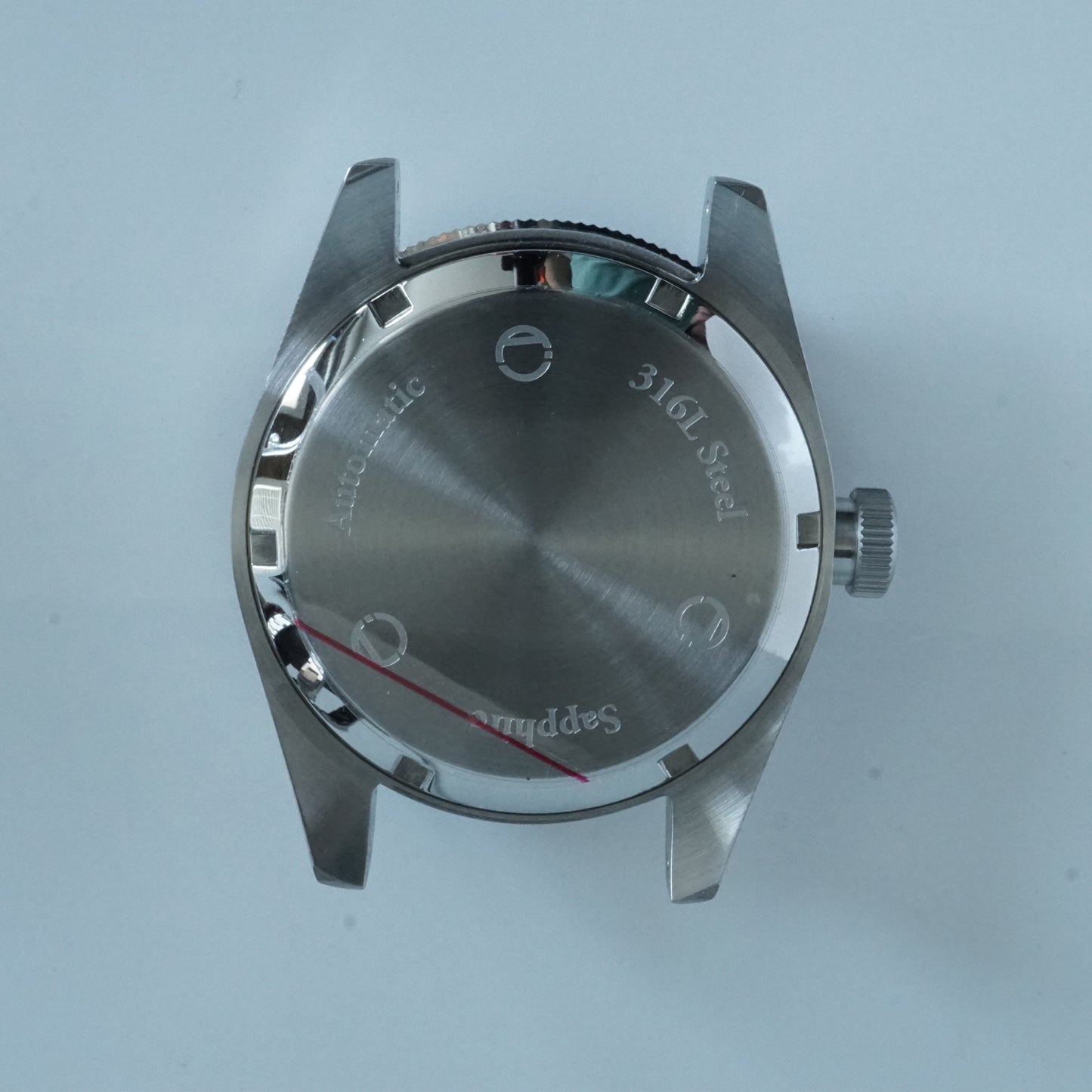

Caseback Screw down, solid , Polished Finish
Water Resistance 20ATM with proper assembly

Included:

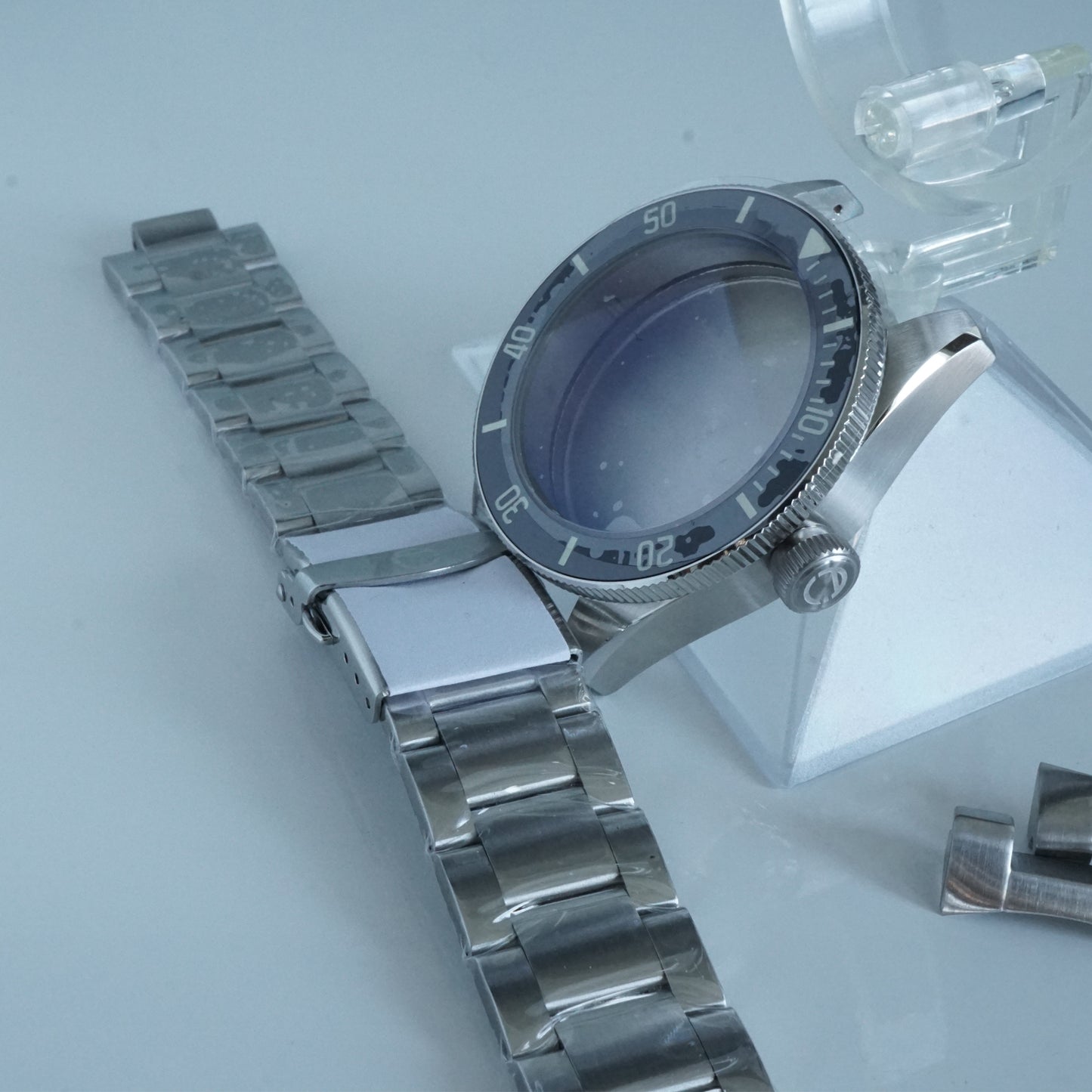

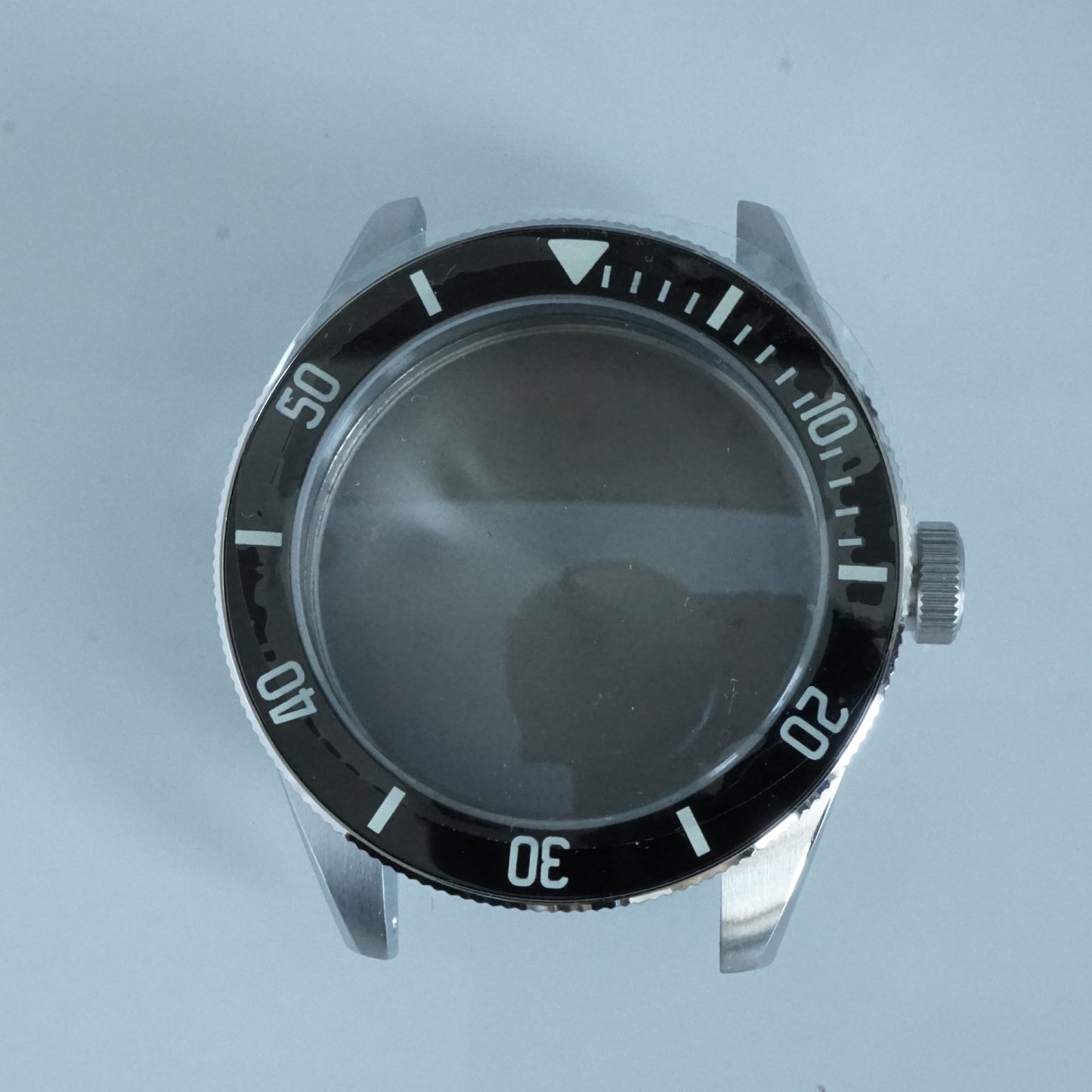

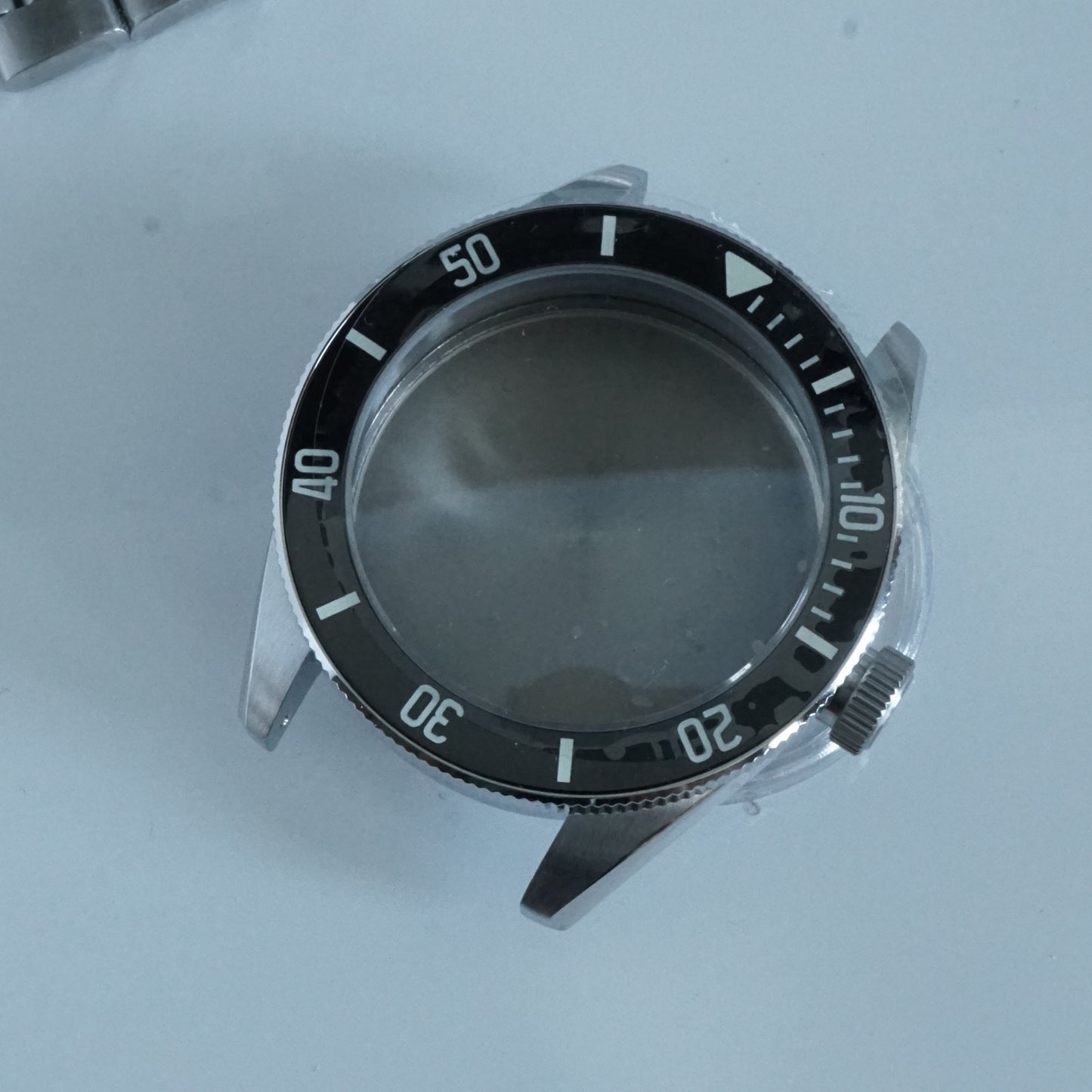

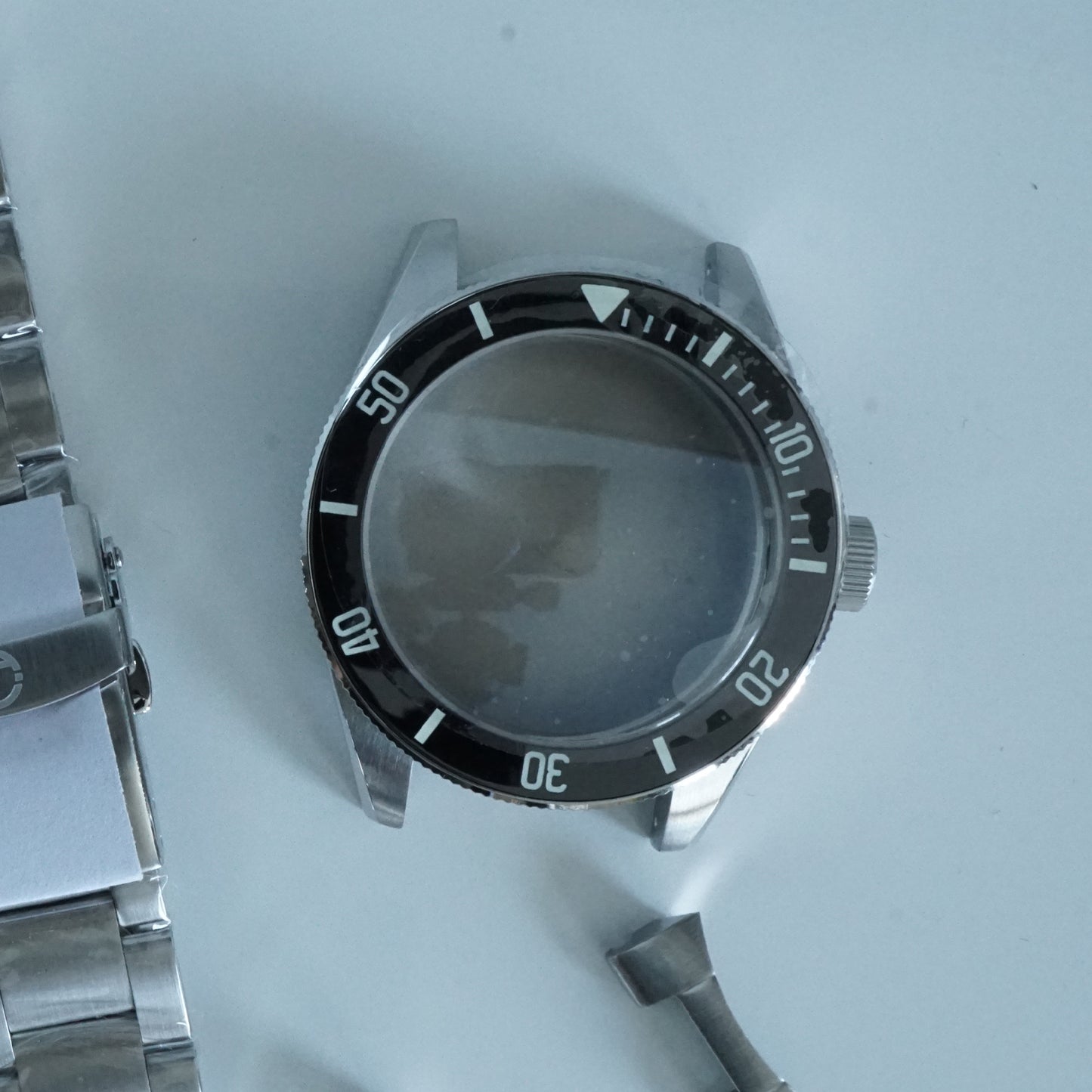

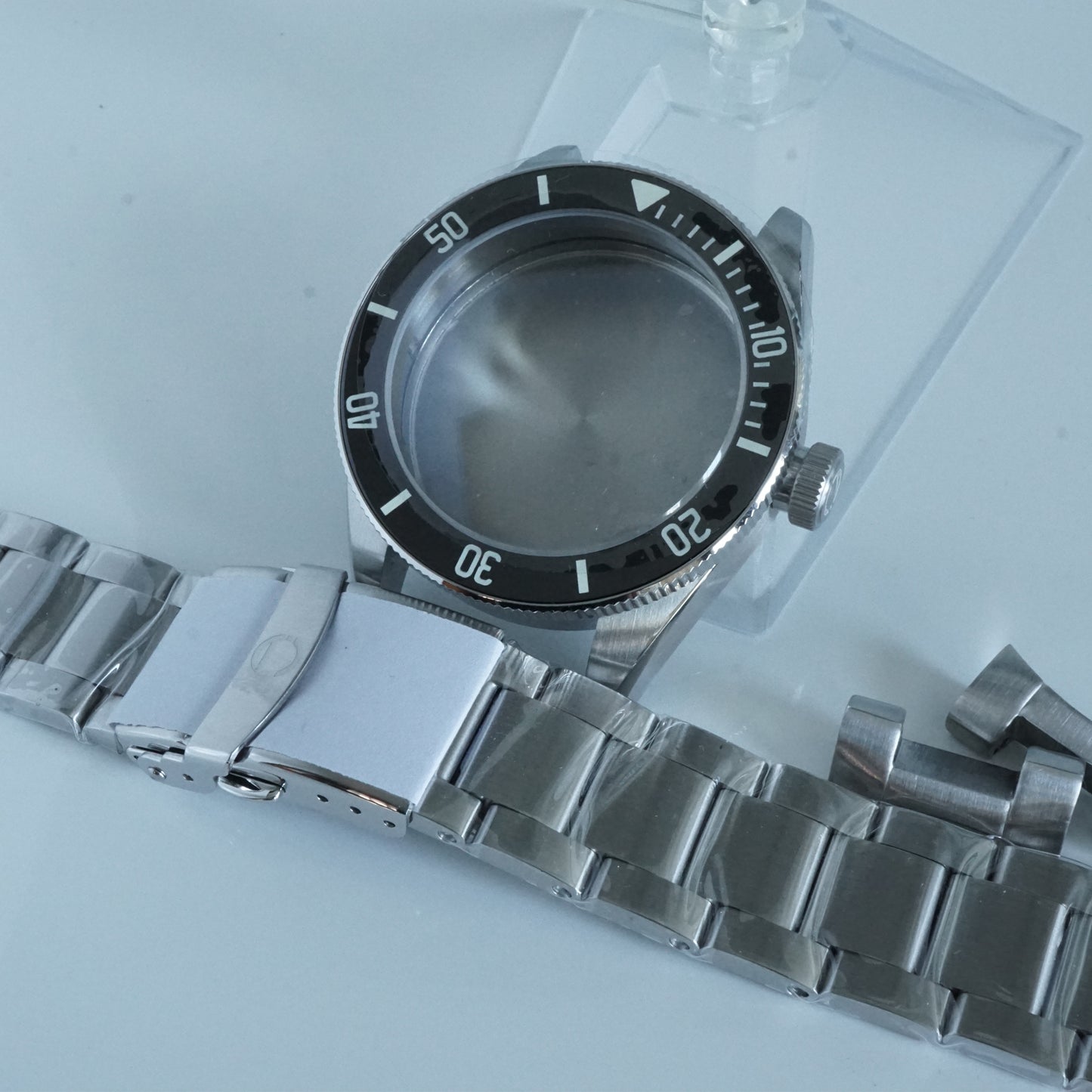

- Case w/ installed bezel and double domed sapphire crystal (note that because it is a double domed crystal, the thickness is taller towards the center of the watch)
- Matching caseback
- Gasket for caseback
- Crown

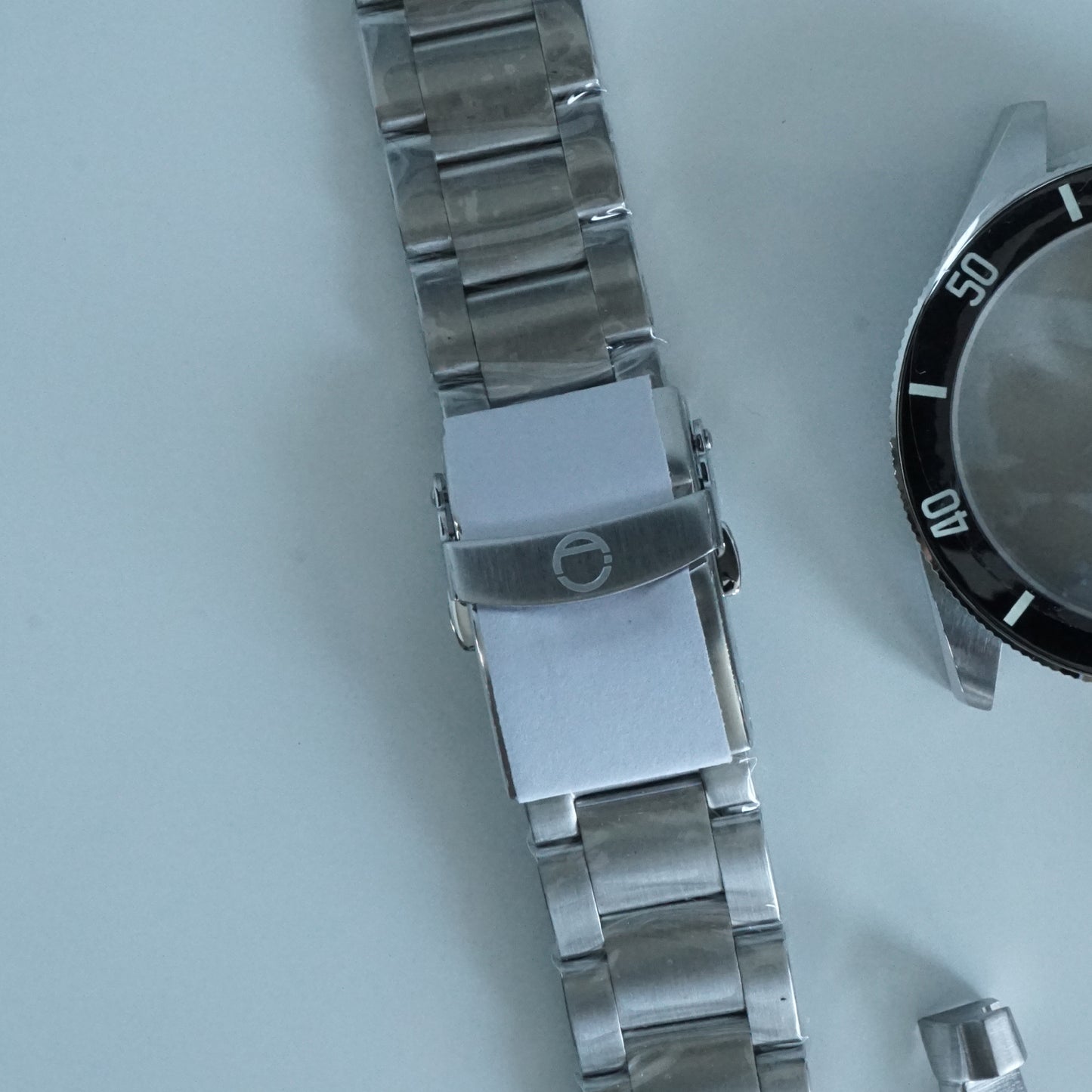

- Bracelet
- Movement Spacer
Compatibility:
These cases are compatible with the following:
- Seiko automatic movements: 7s26, 7s36, 7s25, 7s35, 6r15, 4r15, 4r35, 4r36 (and NH/NE equivalents, including the NH34)
- 32mm dials

Note: These are designed for using the gray spacer that typically comes in Seiko movements like the NH35

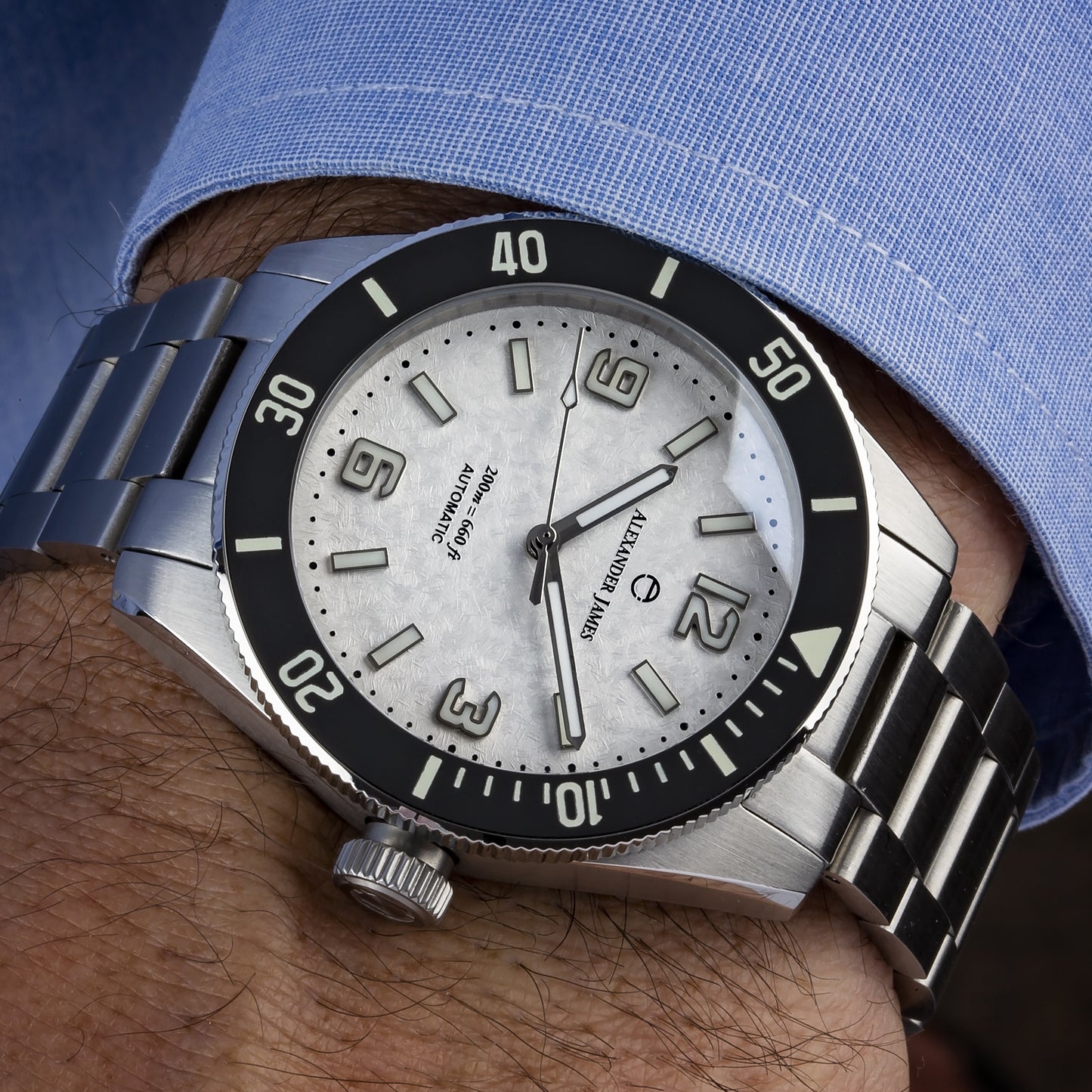

Photos of assembled watches are for illustrative purposes only. You will not receive a dial or hands set with this product
